February 6, 2013

Eads Bridge Rehabilitation Blast Containment Protects Environment, Workers

Return to Blog

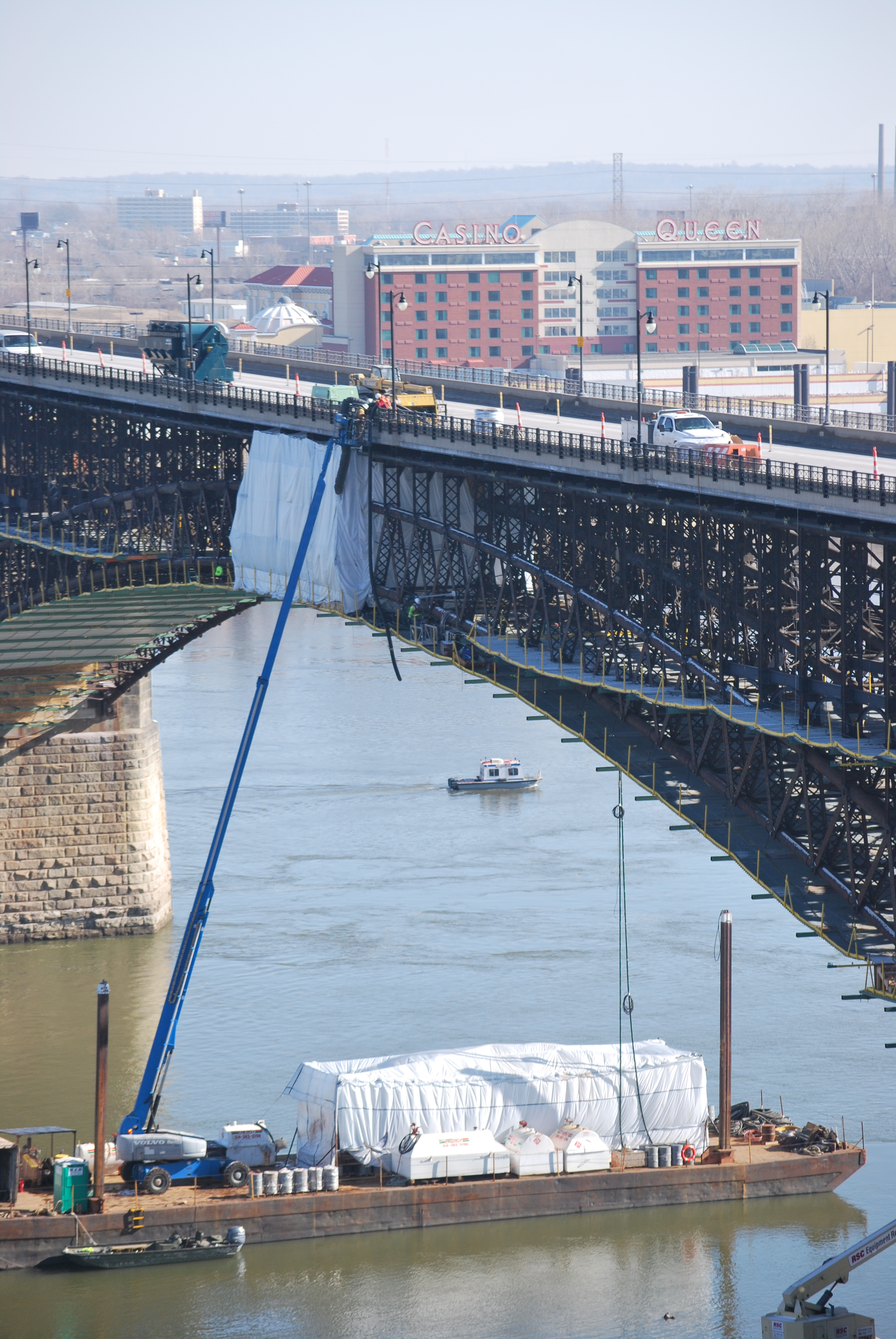

Eads Bridge Containment With Containment Barge 012313 019If you have been on Laclede’s Landing or taken MetroLink across the Eads Bridge lately, then you may have noticed a white cocoon-like tarp covering a small section of the bridge on the north side. It is called the blast containment area and crews installed it as part of the Eads Bridge rehabilitation project which includes blasting off old layers of paint and rust.

Metro is making sure that our contractors and subcontractors are following all regulations and are taking all the appropriate measures to keep the environment, the community, our passengers and bridge workers safe from exposure to any harmful substances which may be contained in the paint chips, dust and debris being removed from the bridge structure.

The blast containment section is the actual work area where the old paint and rust are being removed and where the infrastructure will be primed and new coats of paint will be applied. It is an air tight enclosure made of impermeable canvas tarps fixed to cable rigging attached to the main structure, or directly to the structure itself.  The canvas forming the containment envelope is completely sealed at all structure interfaces.  Fresh air is continually pumped into the air tight containment envelope.

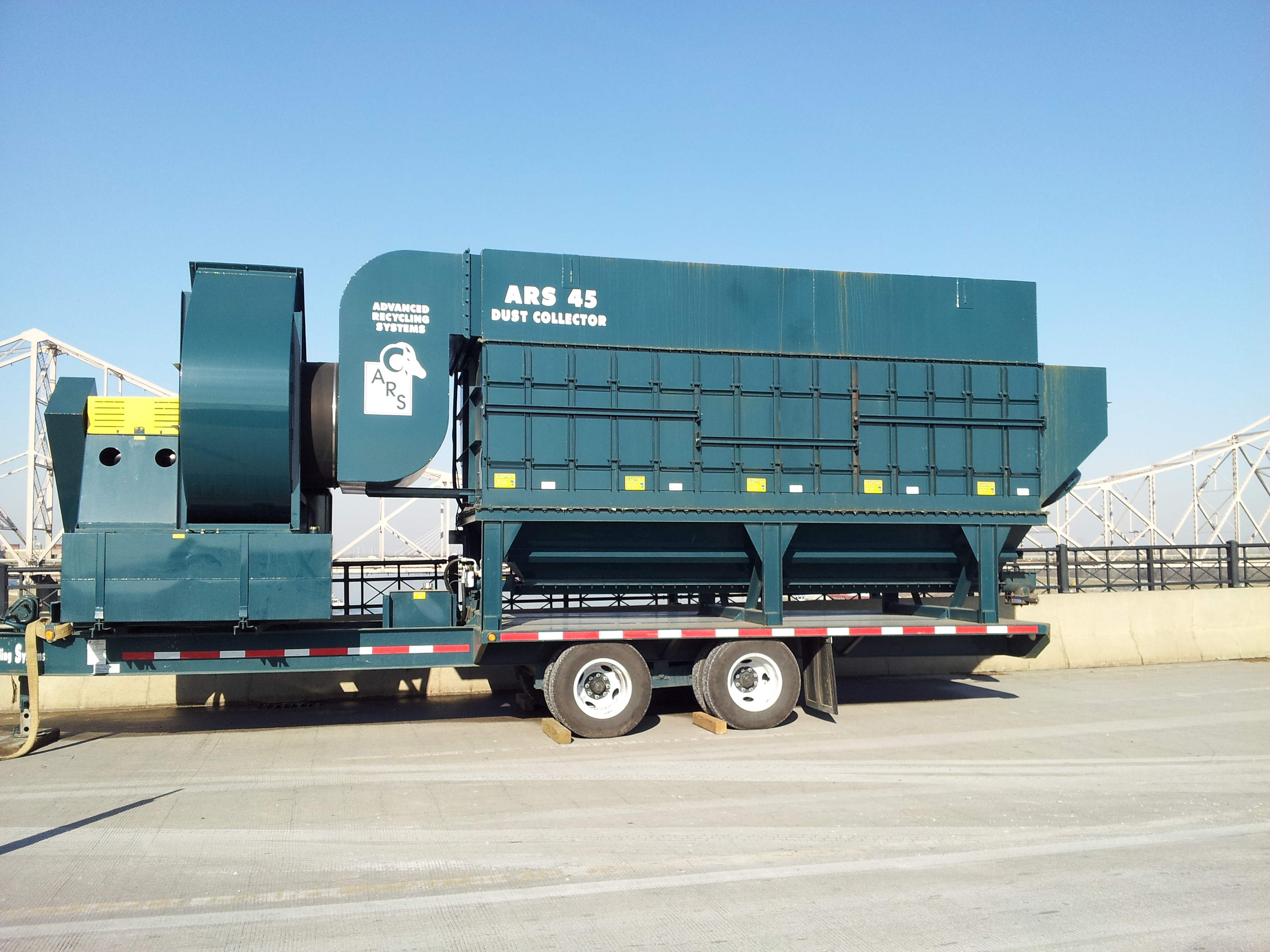

Advanced Recycling Systems Dust Collector

Advanced Recycling Systems Dust Collector

All the waste and dust generated during the blasting and paint removal have to be carefully contained and controlled so no dust or materials can escape into the air outside the blast containment or fall into the Mississippi River. Those blasted materials go through tubes into the secure dust collector which is also stationed directly above the operation on the top deck of the bridge.

Inspections are conducted daily on the blast containment area when it is in use.  If crews see any kind of leakage or containment problem, operations are shut down until the containment is repaired, secured and brought into compliance.

Federal regulations require that air samples be taken 24 hours a day using remote air monitors positioned in the southwest, northwest and southeast quadrants of the bridge project. The air samples were filtered and the particulate matter was analyzed for contaminants every day for the first five days of the operation. Since then, the process is being repeated every three days during the duration of the blasting project. The sample testing results are given to Metro for any required action.

Blasting inside of containment

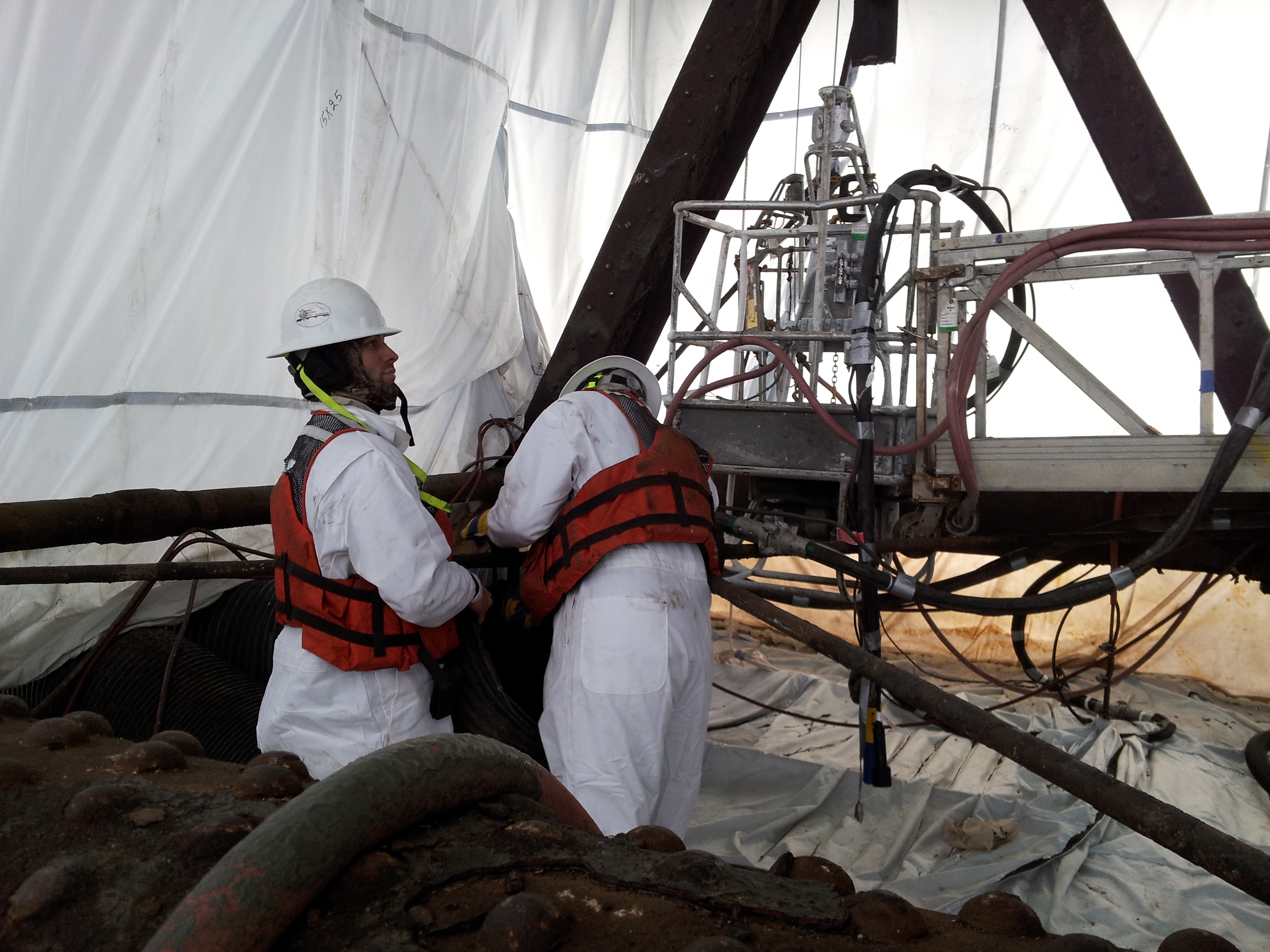

Pre-blast inspection inside of containment

There are also strict procedures that must be followed to ensure the men and women working in the blast containment area are safe and are not being exposed to harmful contaminants on the job.

Any workers performing duties that put them in contact with the dust or fumes generated from the removal or burning (torch cutting) of the existing layers of old bridge paint are required to undergo baseline medical examinations that include blood testing to monitor potential accumulation of heavy metals in the blood.  Workers are tested every two months after their initial medical exams.

As you might imagine, workers on the bridge in the blast containment area are also required to wear the appropriate OSHA approved protective equipment, such as respirators, protective body suits or full hoods, depending on their exposure level.

IMG_0801

Chelsey touring the Eads Bridge

Don’t be surprised if you see more than one blast containment area in the future on the bridge. You may actually see as many as four blast containment areas in operation at any given time during the work on the Eads Bridge over the next three years.

Before containment went up, our contractors took me on a tour of the Eads Bridge rehabilitation project. We walked along the MetroLink track and I got to see them removing a section of track. We also climbed through the bridge structure and onto the safe span. It was a little scary and windy, but the view was worth it.  Below you can see a video of us walking along side the bridge on the safe span. The small boat in the water floating around the bridge is a safety boat. It must be out on the water anytime workers are on the bridge.

Click here to view the slideshow.

Click here to view the video on YouTube.

Categories:
Capital Projects

4 thoughts on “Eads Bridge Rehabilitation Blast Containment Protects Environment, Workers”

  1. Mike F says:

    Considering that there is lead in the paint, and the particulates of rust, metal, and paint are in and of themselves hazardous, I’m wondering why those men are not, at the very least, wearing half-mask respirators with 100% dust filters?

    1. chelseybrooks says:

      Hi Mike, the photo with the painter was taken during the preblast environmental inspection. The picture was taken before any blasting was done.

  2. This is my favorite post so far! I have always been in love with this bridge. I’m very jealous you got to tour it. I learned more about the project and it’s great to know the fishies won’t be eating paint chips =)

  3. Krista Salvatore says:

    Thanks for this information. Now, knowing this i won’t be surprise with the water blast containment happening there. -http://www.waterblast.pro/
